907-2Q Recessed with trim light

Back



PowerL*W*H(mm)Lumen/PowerItem No
Low2340*150*408000lm/80W907-2Q.H240W
1470*150*405000lm/50W907-2Q.H225W
1180*150*404000lm/40W907-2Q.H220W
Medium2340*150*4011200lm/112W907-2Q.C256W
1470*150*407000lm/70W907-2Q.C235W
1180*150*405600lm/56W907-2Q.C228W
High2340*150*402340*150*40907-2Q.2C276W
1470*150*401470*150*40907-2Q.2C247W
1180*150*401180*150*40907-2Q.2C238W





Material & technology

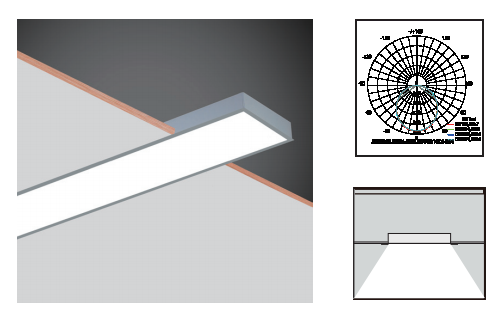

Light distribution：Direct Light

Light source：High brightness SMD LED

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions：Optional with emergency kits and multifunction sensor

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with Pure White, can customize other color

Diffuser：Opal prismatic diffuser combined with LED module

End caps material：ABS

IP：20

Installation：R-Recessed with trim，Can connect with end caps,also can make 180°shadowless system without end caps.
